Bakery castors Page 3

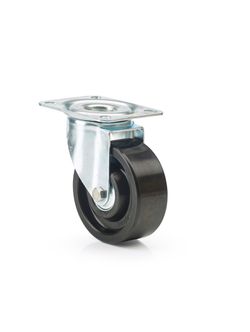

Article no.: JLFL 1001 6152
Swivel castor
100 mm, 150 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
8 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
150 kg
Weight:
1.2 g
Article no.: FXHN 1001 6152
Fixed castor
100 mm, 150 kg
Quantity
Technical data
Diameter:
100 mm
Height:
128 mm
Top plate dimensions:
105x85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80x60 mm
Load capacity:
150 kg

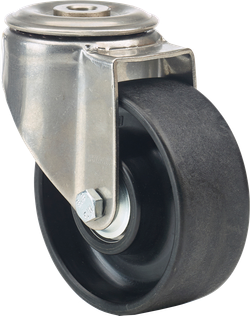

Article no.: JXHN 1005 6152
Swivel castor
100 mm, 150 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
12 mm
Bolt hole diameter:
12 mm
Load capacity:
150 kg
Weight:
0.9 g
JXHN 0705 6152
70
45
105
33
12
12
150
0.9
Article no.: JXHN 1001 6152
Swivel castor
100 mm, 150 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
15 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
150 kg
Weight:
0.94 g
Article no.: FLHN 1001 6152
Fixed castor
100 mm, 150 kg
Quantity
Technical data
Diameter:
100 mm
Height:
128 mm
Top plate dimensions:
105x85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80x60 mm
Load capacity:
150 kg
FLHN 0701 6152
70
105
105x85
9
80x60
150
Article no.: JLHN 1005 6152
Swivel castor
100 mm, 150 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
12 mm
Bolt hole diameter:
12 mm
Load capacity:
150 kg
Weight:
0.9 g
JLHN 0705 6152
70
45
105
33
12
12
150
0.9
Article no.: JLHN 1001 6152
Swivel castor
100 mm, 150 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
15 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
150 kg
Weight:
0.94 g
JLHN 0701 6152
70
45
105
33
15
105 x 85
9
80 x 60
150
0.94

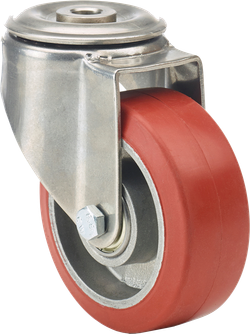

Article no.: JXAT 1005 6150
Swivel castor
100 mm, 80 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
40 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
12 mm
Bolt hole diameter:
12 mm
Load capacity:
80 kg
Weight:
0.9 g
Article no.: JXAT 1001 6150
Swivel castor
100 mm, 80 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
42 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
12 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
80 kg
Weight:
0.9 g
Article no.: FXPT 1001 1000
Fixed castor
100 mm, 75 kg
Quantity
Technical data
Diameter:
100 mm
Height:
128 mm
Top plate dimensions:
105x85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80x60 mm
Load capacity:
75 kg

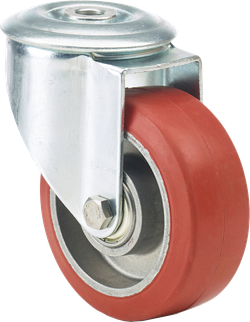

Article no.: JLAT 1005 6150
Swivel castor
100 mm, 80 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
40 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
12 mm
Bolt hole diameter:
12 mm
Load capacity:
80 kg
Weight:
0.9 g
Article no.: JLAT 1001 6150
Swivel castor
100 mm, 80 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
42 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
12 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
80 kg
Weight:
0.9 g
JLAT 1005 6150
100
40
128
33
12
12
80
0.9
Article no.: FXHN 1002 6152/HN
Fixed castor
100 mm, 240 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
130 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
240 kg
Weight:
1.2 g
Article no.: JXHN 1002 6152/HN
Swivel castor
100 mm, 240 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
130 mm
Offset:
40 mm
Wheel axle diameter:
15 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
240 kg
Weight:
1.2 g
Article no.: FSHN 1002 6152/HN
Fixed castor
100 mm, 240 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
130 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
240 kg
Weight:
0.95 g
