Bakery castors Page 2
Article no.: JXFL 0801 1000
Swivel castor
80 mm, 150 kg
Quantity
Technical data
Diameter:
80 mm
Hub length:
40 mm
Height:
105 mm
Offset:
33 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
150 kg
Weight:
1 g
JXFL 1001 1000
100
40
128
33
105 x 85
9
80 x 60
150
1.2
Caster
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring
Wheel
- Phenolic wheel
- With plain bearing and stainless steel hollow axle
Article no.: FXFL 0801 1000
Fixed castor
80 mm, 150 kg
Quantity
Technical data
Diameter:
80 mm
Height:
105 mm
Top plate dimensions:
105x85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80x60 mm
Load capacity:
150 kg
FXFL 1001 1000
100
40
128
105 x 85
9
80 x 60
150
0.6

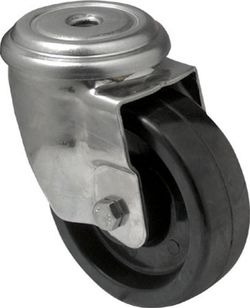

Article no.: JXFL 0805 1000
Swivel castor
80 mm, 150 kg
Quantity
Technical data
Diameter:
80 mm
Height:
105 mm
Offset:
33 mm
Top plate dimensions:
105x85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80x60 mm
Load capacity:
150 kg
JXFL 1005 1000
100
40
128
33
12
12
150
1.2
Article no.: JLPT 1001 1000
Swivel castor
100 mm, 75 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
40 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
12 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
75 kg
Weight:
0.9 g
Caster
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race
Wheel
- Plastic wheel with high temperature rubber tyre
- 62° Shore A
- With plain bearing
Article no.: JLPT 1005 1000
Swivel castor
100 mm, 75 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
40 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
12 mm
Bolt hole diameter:
12 mm
Load capacity:
75 kg
Weight:
0.9 g
Caster
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race
Wheel
- Plastic wheel with high temperature rubber tyre
- 62° Shore A
- With plain bearing
Article no.: JSPT 1002 1000
Swivel castor
100 mm, 75 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
130 mm
Offset:
40 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
75 kg
Weight:
1 g
Caster
- Swivel fork of deep drawn zinc-coated steel
- Swivelhead with sealed precision ball bearings
Wheel
- Plastic wheel with high temperature rubber tyre
- 62° Shore A
- With plain bearing
Article no.: JXPT 1001 1000
Swivel castor
100 mm, 75 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
40 mm
Height:
128 mm
Offset:
33 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
75 kg
Weight:
0.9 g
JXPT 1002 1000
100
45
130
40
10
105 x 85
9
80 x 60
75
1
Caster
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring
Wheel
- Plastic wheel with high temperature rubber tyre
- 62° Shore A
- With plain bearing and stainless steel hollow axle

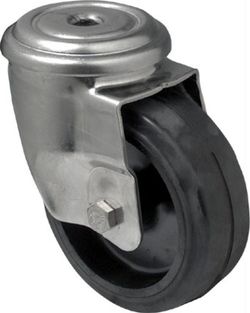

Article no.: JXPT 1005 1000
Swivel castor
100 mm, 75 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
128 mm
Offset:
33 mm
Wheel axle diameter:
10 mm
Bolt hole diameter:
12 mm
Load capacity:
75 kg
Weight:
0.9 g
Caster
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring
Wheel
- Plastic wheel with high temperature rubber tyre
- 62° Shore A
- With plain bearing and stainless steel hollow axle
Article no.: FSHN 1002 6152
Fixed castor
100 mm, 240 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
130 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
240 kg
Weight:
0.95 g
FSHN 0702 6152
70
45
105
35
15
105 x 85
9
80 x 60
160
1.1
FSHN 1002 6152/HN
100
45
130
105 x 85
9
80 x 60
240
0.95
Article no.: JXHN 1002 6152
Swivel castor
100 mm, 240 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
130 mm
Offset:
40 mm
Wheel axle diameter:
15 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
240 kg
Weight:
1 g
JXHN 1002 6152/HN
100
45
130
40
15
105 x 85
9
80 x 60
240
1.2
Article no.: FXHN 1002 6152
Fixed castor
100 mm, 240 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
130 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
240 kg
Weight:
1.2 g
FXHN 0702 6152
70
45
105
35
15
105 x 85
9
80 x 60
160
1.1
FXHN 1002 6152/HN
100
45
130
105 x 85
9
80 x 60
240
1.2
Article no.: FLPT 1001 1000
Fixed castor
100 mm, 75 kg
Quantity
Technical data
Diameter:
100 mm
Height:
128 mm
Top plate dimensions:
105x85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80x60 mm
Load capacity:
75 kg

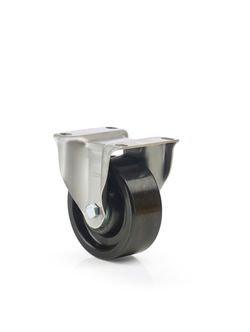

Article no.: FSFL 1002 6152
Fixed castor
100 mm, 240 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
130 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
240 kg
Weight:
0.95 g
Article no.: JSFL 1002 6152
Swivel castor
100 mm, 240 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
130 mm
Offset:
40 mm
Wheel axle diameter:
15 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
240 kg
Weight:
1.3 g

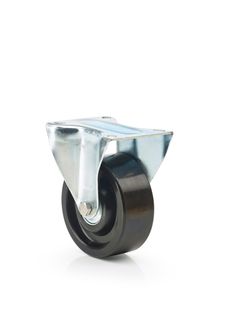

Article no.: FLFL 1001 6152
Fixed castor
100 mm, 150 kg
Quantity
Technical data
Diameter:
100 mm
Hub length:
45 mm
Height:
128 mm
Wheel axle diameter:
8 mm
Top plate dimensions:
105 x 85 mm
Top plate hole diameter:
9 mm
Dist. between holes:
80 x 60 mm
Load capacity:
150 kg
Weight:
1.2 g
